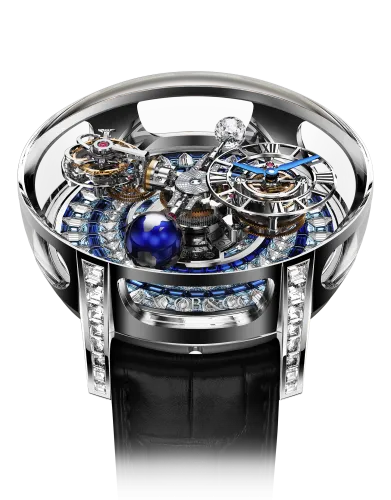

Astronomia Tourbillon 3D

a blue bowl on display

Story

The Astronomia is the epitome of 21st century ultra-high-end watchmaking and a globally recognized symbol of Jacob & Co watchmaking expertise. A world-first both in the boldness of its unprecedented concept and its entirely mechanical construction, the Astronomia has gone beyond impressive horological achievements and has been regarded as an outstanding multidisciplinary engineering achievement.

The Astronomia Tourbillon represents the very essence of Astronomia: it is a cinematic sculpture animated by its four-arm movement construction that rotates and floats through the sapphire-bound space inside its spectacular case. Full of unparalleled watchmaking solutions and adorned with exceptional finishing techniques, the Astronomia Tourbillon has earned its reputation as an inimitable icon in the field of haute horlogerie.

EXCLUSIVE ASTRONOMIA CALIBER

The four arms of the Astronomia Tourbillon carry the triple-axis tourbillon timekeeping organ of the watch, the magnesium globe in hand-painted blue for a spectacular representation of Planet Earth, the exclusive Jacob-Cut® 1-carat diamond with 288 facets, and the differential-leveled, skeletonized time display. This four-arm assembly completes a rotation around the center of the watch and over a spectacular backdrop in 20 minutes. Another astounding feature of the Astronomia Tourbillon is how each pair of opposing arms are perfectly calculated counterweights of one another - a testament to peerless materials engineering and watch movement design. By having equal weights on these opposing arms, its axles are relieved from strain and increased pull, as the movement takes up different orientations in space.

TRIPLE-AXIS TOURBILLON

Whereas the tourbillon was originally invented to be a single-axis, rotating cage to carry the regulating organ of a mechanical pocket watch for improved timekeeping performance, the Astronomia Tourbillon brings this 224-year-old invention to breathtaking levels of modern refinement and complexity.

The triple-axis tourbillon of the Astronomia Tourbillon is at the forefront of modern watchmaking. The triple-axis tourbillon's delicately decorated cage encapsulates the balance wheel, hairspring, escape wheel and a number of other crucially important components. Characterized by this openworked cage, this outstanding tourbillon rotates on three axes simultaneously. It is a constellation of superbly finished components that, when assembled and fine-tuned expertly, allows the JCAM10 to keep accurate time throughout its 60-hour power reserve.

A full rotation on the 1st axis takes exactly 60 seconds, as a nod towards the traditional single-axis tourbillon. The 2nd axis of rotation requires 5 minutes to complete, while the 3rd axis of rotation is made possible by the 20-minute, four-arm rotating platform of the Astronomia Tourbillon. This makes for a bold new look at how tourbillons can function, when engineered with cutting-edge, ultra-modern technologies and timeless horological heritage in mind.

a close up of a blue plate

Astronomia Tourbillon 3D Video

a blue motorcycle

Diamond Dial

The base dial of this timepiece is 3-D set by hand with 103 Blue Sapphires ( 3.36 ctw.), 150 Icy Blue Sapphires ( 2.27 ct.), 134 White Diamonds (~3.31 ctw.). In spectacular timepieces like these, matching the stones is incredibly important and it can take months or even years to find exactly the right matching colors.

THE JACOB-CUT DIAMOND

The Jacob-Cut diamond starts out as a much larger rough diamond. First, a rough diamond big enough has to be found, and the purity, clarity, and color has to be of the highest quality both inside and out, and there can be no inclusions. If they start to cut the diamond and find an inclusion, the entire piece will be ruined.

Next, the diamond is cut by machine into a round shape, close in size to the final diamond.

Then, the gem cutter shapes the stone by hand, cutting each individual facet (of 288). This has to be done slowly and carefully, as the stone has to be perfectly round and symmetrical. The danger is that the stone will become oblong and not round. To be used in the Astronomia Collection, the Jacob-cut diamond has to be completely round and weigh exactly as much as the other three satellites (time display, triple-axis tourbillon, magnesium globe).

During the process, if the gem cutter puts slightly too much pressure while adding the facets, too much of the diamond will be cut away, and the ball will end up smaller than the desired diameter. The cutting process takes at least two weeks of dedicated, painstaking work.

To make the final one-carat, Jacob-cut diamond with 288 facets, more than half of the initial rough diamond will be cut away.

The complexity of cutting the 288 facets by hand and making sure everything is symmetrical and the diamond is absolutely round, is what makes the Jacob & Co. diamond used in the Astronomia collection so special.

THE MAGNESIUM GLOBE

The globe is made of blue-lacquered magnesium with gold continents to ensure consistency in weight, as all four satellites have to weigh exactly the same. The globe rotates on itself in 30 seconds, while traveling around the dial in 10 minutes.

CASE & CRYSTAL

The Astronomia Tourbillon's case measures 50 millimeters in diameter and 25 millimeters thick between the highest point of its specially curved front sapphire crystal and the lowest point of its case. Crafted from 18K Rose Gold or 18K White Gold, every variation features four sapphire crystal windows installed throughout the periphery of the case, allowing for unhindered viewing of the spectacular caliber inside.

DIAL & HANDS

The time display sub-dial of the Astronomia Tourbillon 3D is driven through an infinitesimal differential system that allows it to always remain in the correct, 12/6 position as it rotates together with the movement's four-armed platform across the front of the Astronomia. The Roman numerals on the skeletonized dial are hand-engraved and filled with black lacquer, while the hand-finished hands appear in gun blue metallic.

an image involving table sitting display

AT A GLANCE:

Iconic gravitational triple-axis tourbillon

50mm 18K rose gold and sapphire crystal case, with sapphire crystal back

All four satellites constantly turn around the dial in 20 minutes

288-facet Jacob-cut diamond turning in 60 seconds

Magnesium globe turning in 60 seconds

Unique differential always keeps the time display in the correct 12/6 orientation, no matter where it is the rotation

Domed and curved, anti-reflective sapphire crystal

Unique crown-less design; winding and setting lift-out bows on the case back

The lugs of the 18K white gold and sapphire-case are invisibly hand-set with 80 baguette-cut white diamonds (≈ 6.10 ct.

The base dial is invisibly-set with 103 Blue Sapphires (3.36 ct.), 150 icy blue sapphires (2.27 ct.), and 134 white diamonds (3.31 ct.)

Technical Specifications

Item Number: AT800.30.BD.UI.B

MOVEMENT: Caliber: Manufacture Jacob & Co. Manual Winding JCAM18; Diameter: 40mm; Height: 17.15mm; Components: 365; Functions: Hours and Minutes; Power Reserve: 60-Hours; Frequency: 21'600 vib/h (3 Hz); Jewels: 42; Finishing: Plate and Bridges: Hand Angled and Polished, Flank Draw, Circular Graining, Polished Sink; Polished Screws; Barrel: Circular Graining; Pinions: Conical Pinions; 4 Mechanical Ball Bearing Devices; Flat Balance Spring.

SYSTEM: Vertical Movement with 4 Arms, Full Revolution in 10 min around a Central Axis; Gravitational Triple Axis Tourbillon, 1st Cage rotating in 60 sec and 2nd Cage in 2.5 min; 1 Carat Exclusive Jacob cut® Diamond: 288 Facets, rotating on itself in 30 sec; Magnesium Blue Lacquered Globe, rotating on itself in 30 sec; Hours and Minutes Dial, Patented Differential Gears System℗ allows to keep the 12/6 O'clock position.

CASE: Diameter: 50mm; Height: 25mm; Material: 18K White Gold; Sapphire Apertures on Sides; Case Back: 18K White Gold; Bows: Winding and Time-Setting via 18K White Gold lift-out rotating "bows" at case back; Front Case: 18K White Gold; 3D setting of 103 Blue Sapphires (≈ 3.36 ct.), 150 Icy Blue Sapphires (≈ 2.27 ct.) and 134 White Diamonds (≈ 3.31 ct.); Lugs: 80 Baguette White Diamonds Invisibly Set (≈ 6.10 ct.); Crystal: Unique Domed Sapphire with Anti-Refl ective Treatment.

DIAL & HANDS: Dial: Titanium, Polished and angled, Lacquered Indexes; Hands: Blue Finish.

STRAP & CLASP: Strap: Alligator; Clasp: 18K White Gold Folding Buckle invisibly set with 22 Baguette White Diamonds (≈ 1.4 ct.).

REMARKS: Water resistant to 30m (ISO 2281); 2-year warranty.

LIMITED EDITION: Unique piece.
